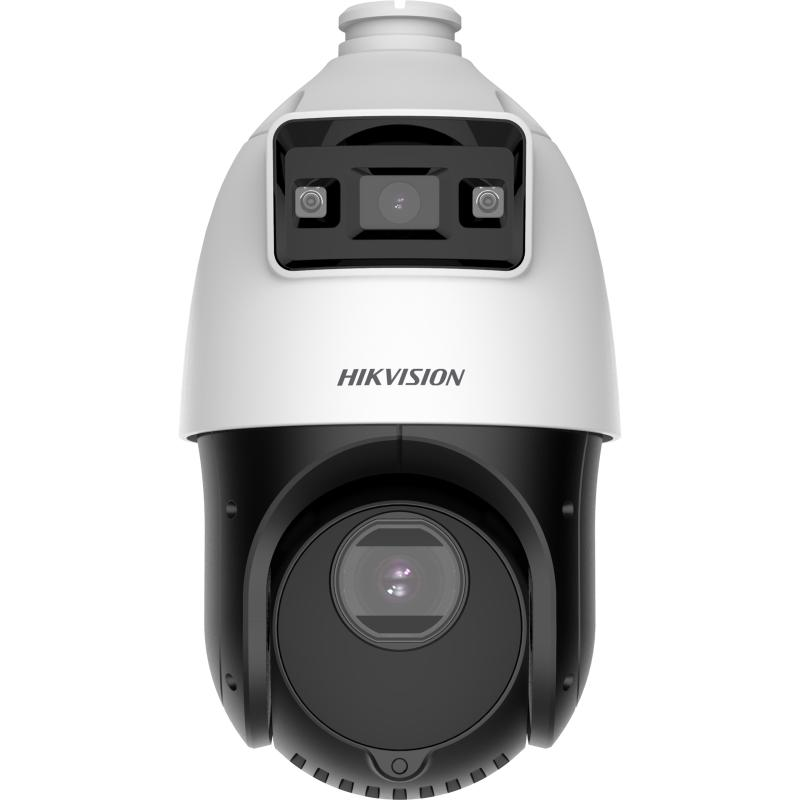

Hikvision DS-2SE4C225MWG-E(12F0) – TandemVu 4-Inch 2 MP 25X Colorful & IR Network Speed Dome
The Hikvision DS-2SE4C225MWG-E(12F0) is a TandemVu PTZ speed dome that pairs a fixed ColorVu bullet channel with a long-reach 25× zoom PTZ channel on one unit. Specifically, the 2.8 mm bullet channel uses an F1.0 aperture and white-light illumination to hold a constant, colour-lit overview even at night. Meanwhile, the PTZ channel zooms 4.8–120 mm (25× optical, 16× digital), so operators pull in identification-level detail anywhere within that wide view. In addition, both channels use a 1/2.8″ progressive scan CMOS sensor, and DarkFighter technology keeps footage usable in low light. As a result, this dome suits large open sites where a fixed overview and a long zoom both matter.
Furthermore, deep-learning-based human and vehicle classification filters motion events, so the PTZ channel can jump to a preset or trigger a patrol scan instead of chasing false alerts. On top of that, the PTZ channel reaches up to 100 m of IR, while the bullet channel adds up to 30 m of white light for colour night footage. The dome pans a full 360° and tilts -15° to 90° with auto-flip, and stores up to 300 presets across 8 patrol scans. Consequently, the housing carries an IP66 rating with lightning and surge protection, and runs on 12 VDC or PoE+.
Technical Specifications
Camera & Optics
| Specification | Details |
|---|---|
| Model | DS-2SE4C225MWG-E(12F0) |
| Camera Type | TandemVu 4-Inch 2 MP 25X Colorful & IR Network Speed Dome |
| Image Sensor | Bullet channel: 1/2.8″ Progressive Scan CMOS; PTZ channel: 1/2.8″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 on both channels |
| Lens (Bullet Channel) | Fixed 2.8 mm, F1.0, FOV 106.1° (H) / 56.8° (V) / 126.5° (D) |
| Lens (PTZ Channel) | Motorised 4.8–120 mm, 25× optical zoom, F1.6, FOV 54.8°–2.8° (H, wide-tele) |
| Zoom | PTZ channel: 25× optical, 16× digital, approx. 3.6 s zoom speed |
| Pan Range | 360° continuous, configurable 0.1°–80°/s, preset speed 80°/s |
| Tilt Range | -15° to 90° (auto flip), configurable 0.1°–80°/s |
| DORI Range (Tele) | Detect 1517.2 m / Observe 602.1 m / Recognise 303.4 m / Identify 151.7 m |
| Minimum Illumination | Bullet channel: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; PTZ channel: Colour 0.005 Lux, B/W 0.001 Lux, 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s, slow shutter supported |
| Day/Night | ICR switch, Day/Night/Auto/Scheduled |
| Wide Dynamic Range | 120 dB WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, defog, regional exposure, regional focus, EIS image stabilisation |
| Smart Features | Human and vehicle classification (deep learning), audio exception detection, region entrance/exiting, intrusion, line crossing detection; face capture on PTZ channel |
| Illumination Type | PTZ channel: IR, up to 100 m; Bullet channel: white light, up to 30 m |
| Privacy Mask | Bullet channel: 8 masks; PTZ channel: 24 masks, colour or mosaic configurable |
| Presets / Patrol / Pattern | 300 presets; 8 patrol scans (up to 32 presets each); 4 pattern scans |
Video & Audio
| Specification | Details |
|---|---|
| Video Compression | H.265+, H.265, H.264, MJPEG; H.264 Baseline/Main/High profile; H.265 Main profile; SVC supported |
| Bit Rate | 32 Kbps to 16,384 Kbps |
| Frame Rate | 50 Hz: 25 fps; 60 Hz: 30 fps, at 1920 × 1080, 1280 × 960, or 1280 × 720, on both channels |
| Streams | Main, sub, and third stream per channel; 8 fixed ROI regions per stream |
| Audio | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC; 8/16/32/48 kHz sampling; environment noise filtering |
Network & Storage
| Specification | Details |
|---|---|
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket |
| API/ONVIF | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Ethernet | 1 RJ45 10M/100M self-adaptive port |
| Simultaneous Live View | Up to 20 channels; up to 32 users |
| Software Clients | iVMS-4200, Hik-Connect |
| Security | Authenticated username/password, MAC address binding, HTTPS encryption, 802.1X, IP address filter |
| Network Storage | Built-in microSD/microSDHC/microSDXC slot, up to 256 GB; NAS (NFS, SMB/CIFS) with ANR |
| Alarm I/O | 1 alarm input, 1 alarm output |
| Events | Motion detection, video tampering, smart events listed above; linkage to FTP/NAS/microSD upload, surveillance centre notification, email, alarm output, recording, and PTZ actions (preset, patrol scan, pattern scan) on the PTZ channel |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC, or PoE+ |
| Power Consumption | Max. 24 W, including up to 2.6 W for the heater and up to 11 W for supplement light |
| Ingress Protection | IP66, 6000V lightning protection, surge and voltage transient protection |
| Operating Conditions | -30°C to 65°C; humidity below 90% RH |
| Material | ADC12 (die-cast aluminium alloy) |
| Dimensions | Ø 166 mm × 375 mm |
| Weight | Approx. 2.4 kg |
Who This Camera Suits Best
- Large open sites needing overview and long-reach zoom – for instance, riverbanks, highways, and railway corridors benefit from the fixed bullet channel holding a colour-lit overview while the PTZ channel zooms in on a specific person or vehicle up to 25×.
- Sites replacing two cameras with one at longer range – since the bullet and PTZ channels share a housing and a single PoE+ run, it suits large compounds and industrial sites that need both context and identification-level zoom without running two separate cameras.
- Scheduled patrol with face capture – with 300 presets, 8 patrol scans, and face capture on the PTZ channel, it suits access points, car parks, and perimeters that need automated sweeps plus closer identification when a person is flagged.
