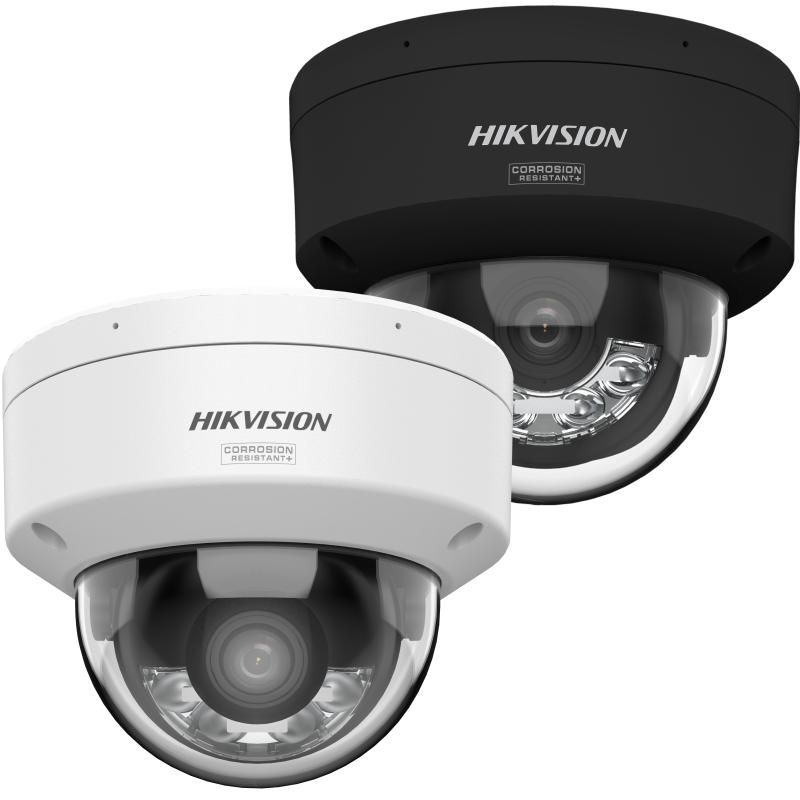

Hikvision DS-2CD2147G3-LIS2UY(2.8MM) – 4 MP Smart Hybrid Light with ColorVu Fixed Dome Network Camera
The Hikvision DS-2CD2147G3-LIS2UY(2.8mm) is a Pro-series 4 MP fixed dome network camera built around ColorVu imaging and an F1.0 super-aperture lens. Specifically, it uses a 1/1.8″ progressive scan CMOS sensor with HikAI-ISP noise reduction, which keeps colour visible down to just 0.0001 Lux. As a result, footage stays vivid around the clock, instead of fading to grainy monochrome at night. In addition, Smart Hybrid Light blends IR and white-light illumination across three supplemental modes, extending clear coverage up to 30 m.
Meanwhile, deep-learning-based person and vehicle classification drives smarter alerts, and perimeter tools such as line crossing, intrusion detection, and region entrance/exit add another layer of protection. Furthermore, the -S2U designation means this variant includes a built-in arrayed dual-microphone for high-quality audio pickup, plus an alarm input/output for linking to sirens or access control. On top of that, the housing carries an IP67 rating for dust and water resistance, an IK10 vandal-resistant rating, and NEMA 4X-level anti-corrosion protection, making it noticeably tougher than standard value-series domes.
Unlike the value-series LIU models, this camera does include on-board storage: a built-in microSD slot supports cards up to 512 GB, alongside a functioning reset key. Therefore, it can record independently or work alongside an NVR, and it also supports NAS recording over NFS or SMB/CIFS for larger deployments.
Technical Specifications
Camera & Optics
| Specification | Details |
|---|---|
| Model | DS-2CD2147G3-LIS2UY(2.8mm) |
| Camera Type | 4 MP Smart Hybrid Light with ColorVu Fixed Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 2688 × 1520 (4 MP) |
| Lens | Fixed focal, 2.8 mm, F1.0, M16 mount |
| Field of View | 111.1° (horizontal), 57.6° (vertical), 138.5° (diagonal) |
| Depth of Field | 2.5 m to ∞ |
| Detection / Observation Range (DORI) | Detect: 61 m; Observe: 24 m; Recognize: 12 m; Identify: 6 m |
| Minimum Illumination | Colour: 0.0001 Lux @ (F1.0, AGC ON); 0 Lux with supplement light on |
| Shutter Speed | 1 s to 1/100,000 s |
| Day/Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0°–355°; Tilt: 0°–75°; Rotate: 0°–355° |
Video & Audio
| Specification | Details |
|---|---|
| Wide Dynamic Range | 130 dB WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Image Stabilization | EIS (Electronic Image Stabilization) |
| Smart Features | Human and vehicle classification, line crossing, intrusion, region entrance/exit, scene change detection, face capture |
| Illumination Type | Smart Hybrid Light – IR (850 nm) and white light, 3 supplement modes |
| Supplement Light Range | Up to 30 m |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Bit Rate | 32 Kbps to 8 Mbps |
| Frame Rate | Up to 30 fps @ 2688 × 1520 |
| Image Enhancement | BLC, HLC, 3D DNR, distortion correction, defog, 4 programmable polygon privacy masks |
| Audio | -S2U: built-in arrayed dual-microphone, mono sound, 8/16/32/48 kHz sampling, G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Network & Storage
| Specification | Details |
|---|---|
| Network Storage | Built-in microSD/microSDHC/microSDXC slot, up to 512 GB; also supports NAS (NFS, SMB/CIFS) with Auto Network Replenishment |
| Reset Key | Yes |
| Alarm I/O | -S: 1 input, 1 output (max. 24 VAC/VDC, 1 A) |
| Simultaneous Live View | Up to 6 channels; up to 32 users |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP |
| Security | Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, TLS 1.1/1.2/1.3, security audit log |
| Software Clients | iVMS-4200, Hik-Connect, Hik-Central |
Power & Physical
| Specification | Details |
|---|---|
| Power Supply | 12 VDC ± 25%, 0.6 A, max. 7.2 W; or PoE (IEEE 802.3af, Class 3, max. 9 W) |
| Ingress / Impact Protection | IP67 (dust and water resistant), IK10 (vandal resistant) |
| Anti-Corrosion Protection | NEMA 4X (moderate protection level) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F); humidity 95% or less |
| Material | Base and cover: aluminum alloy |
| Dimensions | Ø 121.5 mm × 97.6 mm (Ø 4.78″ × 3.84″) |
| Weight | Approx. 600 g (1.3 lb.) |
Who This Camera Suits Best
- Retail shops, offices, and reception areas needing audio evidence – for instance, the built-in dual microphone captures clear audio alongside 24/7 colour footage at entrances and tills.
- Coastal or corrosion-prone sites in Kenya – since the housing carries NEMA 4X-level anti-corrosion protection, it suits installations near the coast or in humid, salty environments better than standard domes.
- Perimeter security for compounds and warehouses – deep-learning line crossing and intrusion detection, meanwhile combined with IK10 vandal resistance, suit boundary walls, loading yards, and unattended sites prone to tampering.
