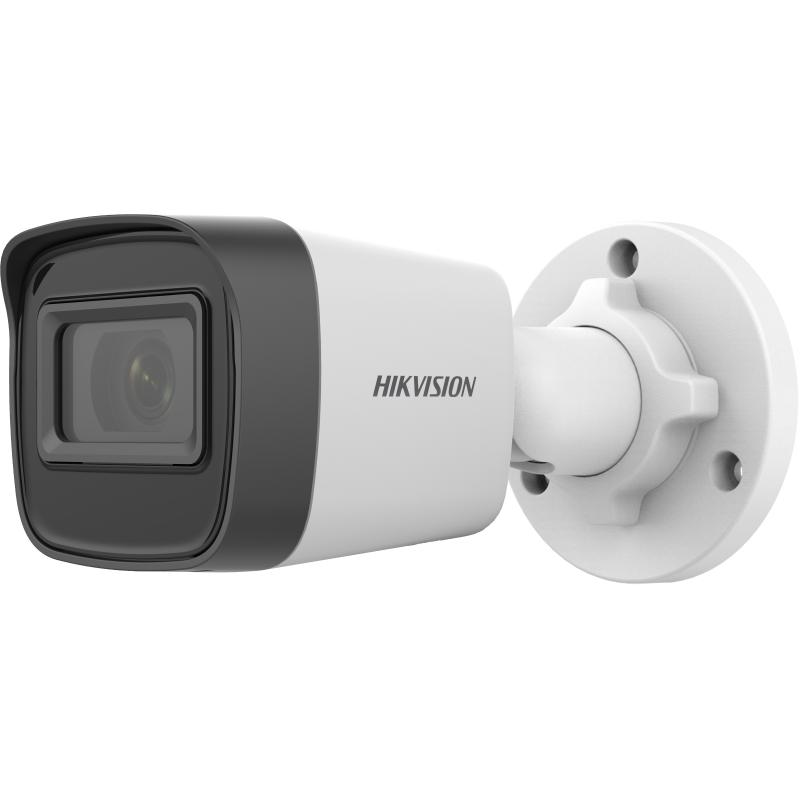

Hikvision DS-2CD1021G0-I(4MM) – 2 MP Fixed Bullet Network Camera
The Hikvision DS-2CD1021G0-I(4MM) is a 2 MP fixed bullet network camera designed as a straightforward, budget-friendly entry point for basic surveillance. Specifically, it uses a 1/2.9″ progressive scan CMOS sensor paired with a fixed 4 mm lens, giving an 80° horizontal field of view and a detection range up to 55 m. As a result, it suits small shops, gates, and single-point coverage where advanced smart features aren’t required.
Illumination and Build
Furthermore, the camera includes a standard IR illuminator with a supplementary lighting range of up to 20 m, so it captures usable black-and-white footage after dark. Unlike the Smart Hybrid Light models in this catalog, it does not include white-light illumination, human/vehicle detection, or built-in audio — this is a simpler, budget-tier design. The housing carries an IP67 rating for dust and water resistance, and it operates across a -30°C to 60°C range.
Power and Storage Note
Either 12 VDC or PoE (IEEE 802.3af) can power it, making installation straightforward. Note that this model has no on-board microSD slot, so it depends entirely on an NVR or VMS for recording. Buyers who need local storage or smart detection features should consider a Smart Hybrid Light (G2) model instead.
Technical Specifications
Camera, Lens, and Illumination
| Specification | Details |
|---|---|
| Model | DS-2CD1021G0-I(4MM) |
| Camera Type | 2 MP Fixed Bullet Network Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (2 MP) |
| Lens | Fixed focal, 4 mm, F2.2, M12 mount |
| Field of View | 80° (horizontal), 44° (vertical), 94° (diagonal) |
| Detection / Observation Range (DORI) | Detect 55 m / Observe 22 m / Recognize 11 m / Identify 5 m |
| Minimum Illumination | Colour: 0.01 Lux @ (F2.2, AGC ON); B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day/Night | IR cut filter with auto switch |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Wide Dynamic Range | Digital WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Smart Features | Motion detection, exception alarm (no human/vehicle classification) |
| Illumination Type | IR only (850 nm) |
| Supplement Light Range | Up to 20 m |
| Image Enhancement | BLC, HLC, 3D DNR |
Video, Network, Power, and Build
| Specification | Details |
|---|---|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 |
| Bit Rate | 32 Kbps to 8 Mbps |
| Frame Rate | 25 fps @ 1920 × 1080 (50 Hz); 30 fps (60 Hz) |
| Audio | Not supported |
| Network Storage | None on-board (NVR/VMS recording only) |
| Simultaneous Live View | Up to 6 channels; up to 32 users |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS |
| Security | Password protection, complicated password, watermark, basic and digest authentication, security audit log |
| Software Clients | iVMS-4200 |
| Power Supply | 12 VDC ± 25%, 0.41 A, max. 5 W; or PoE (IEEE 802.3af, Class 3, max. 6.5 W) |
| Ingress Protection | IP67 (dust and water resistant) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F); humidity 95% or less |
| Material | Plastic |
| Dimensions | 138.8 mm × 60.9 mm × 57.9 mm |
| Weight | Approx. 175 g (0.4 lb.) |
Who This Camera Suits Best
- Budget-conscious NVR installations – its low cost and NVR-dependent recording suit buyers who already have centralised storage and don’t need smart detection.
- Small shops and single entry points – the 4 mm lens’s 55 m detection range fits gates, doorways, and small storefronts needing basic coverage.
- Straightforward PoE deployments – simple installation over a single Ethernet cable suits small offices or homes without complex requirements.
