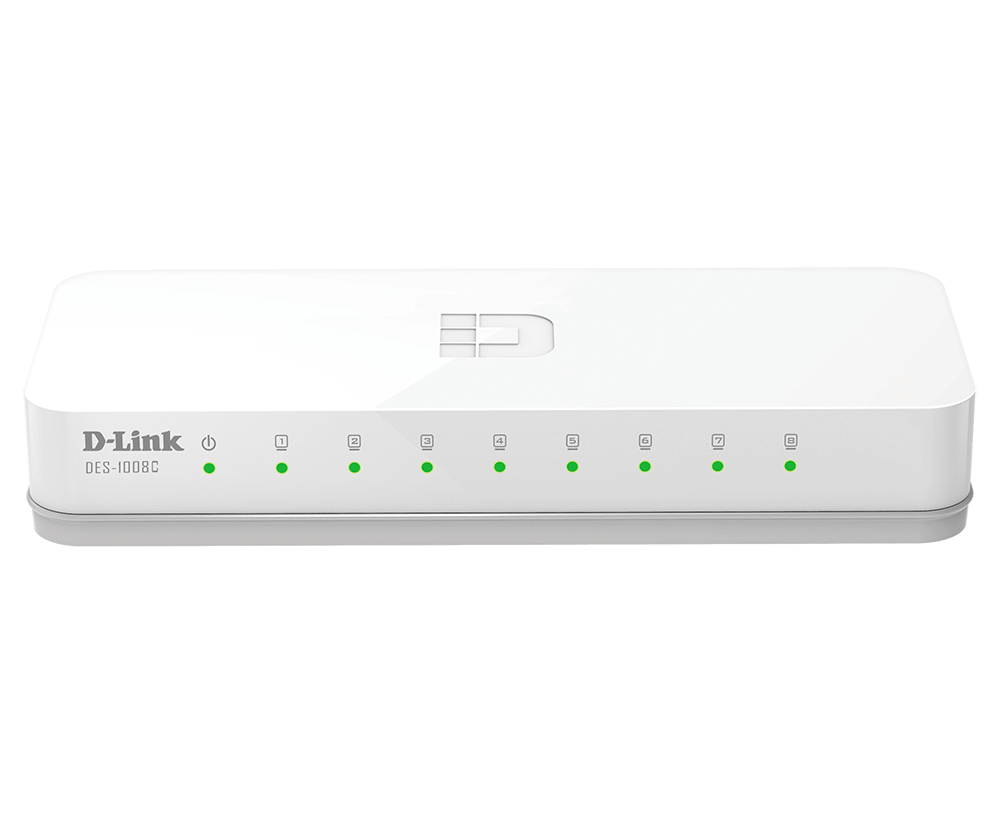

D-Link DES-1008C/B 8-Port 10/100 Fast Ethernet Unmanaged Switch

D-Link DES-1008C – Key Details

Basic Specifications:

• 8 ports – 10/100 Mbps Fast Ethernet
• Unmanaged switch – Plug-and-play, no configuration needed
• Switching capacity – 1.6 Gbps switching fabric

Performance:

• Full duplex: 200 Mbps per port
• Half duplex: 100 Mbps per port
• Packet forwarding rate: 148,800 pps per port (Fast Ethernet)
• MAC address table: 2,000 entries

Energy Efficiency:

• IEEE 802.3az EEE (Energy Efficient Ethernet)
• Maximum power consumption: 1.55 watts
• Standby power: 0.55 watts
• Auto power-down on idle ports
• Cable-length power optimization

Physical Characteristics:

• Dimensions: 131 × 54 × 21 mm (5.16 × 2.13 × 0.83 inches)
• Weight: 74.8 grams (2.63 ounces)
• Power: DC 5V / 0.55A (side-mounted jack)
• Operating temp: 0 to 40°C

Features:

• Auto MDI/MDIX on all ports (automatic crossover detection)
• Store-and-forward switching method
• 802.3x flow control
• LED indicators per port (Link/Activity/Speed)
• Supports 2,048-byte jumbo frames
• Fanless/silent operation
