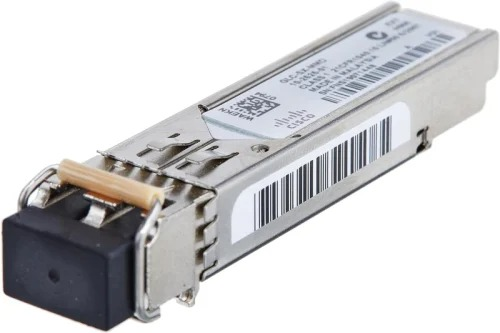

Cisco GLC Series SFP Transceiver Module GLC-SX-MMD

The Cisco GLC-SX-MMD is a hot-swappable SFP transceiver module designed for short-range Gigabit Ethernet connectivity. Specifically, this module uses multimode fiber to provide reliable connections up to 550 meters. Consequently, it serves as an ideal solution for in-building network connections, server-to-switch links, and data center applications. Furthermore, organizations seeking cost-effective fiber connectivity for shorter distances rely on this genuine Cisco transceiver for its proven reliability and compatibility.

Technical Specifications

Optical Characteristics

• Wavelength: 850nm nominal
• Fiber Type: Multimode fiber (MMF) – 50/125μm or 62.5/125μm
• Maximum Distance: 550m on OM2 fiber, 220m on OM1 fiber
• Connector Type: Duplex LC connector
• Transmit Power: -9.5 to -3 dBm
• Receiver Sensitivity: -17 dBm minimum

Performance Standards

• Data Rate: 1.25 Gbps
• Ethernet Standard: IEEE 802.3z 1000BASE-SX compliant
• Link Budget: Minimum 7.5 dB

Physical Specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Dimensions: 56.5mm x 13.4mm x 8.5mm (standard SFP dimensions)
• Weight: 20 grams (0.7 oz)
• Digital Diagnostics: DOM/SFF-8472 compliant

Power & Environmental

• Power Consumption: 1W maximum
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C (32°F to 158°F) – commercial grade
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5% to 85% non-condensing

Compatibility

• Compatible Equipment: Cisco Catalyst switches, Nexus switches, ASR routers, ISR routers
• Port Requirements: Standard SFP/SFP+ port (backward compatible in SFP+ slots)
• Minimum IOS: Varies by platform (check Cisco compatibility matrix)

Regulatory & Safety

• Safety Standards: UL, CSA, TUV, CCC
• Laser Safety: Class 1 laser product
• EMC Compliance: FCC Part 15, CE Mark, VCCI
• RoHS: Compliant

Use Cases & Applications

Server-to-Switch Connections

The GLC-SX-MMD excels in connecting servers to top-of-rack switches within data centers. Typically, these connections require high-speed links over relatively short distances. Therefore, multimode fiber provides the ideal balance between performance and cost. In doing so, it enables consistent Gigabit speeds without the expense of single-mode infrastructure.

For instance, a data center can connect dozens of servers to distribution switches using existing multimode fiber cabling. Meanwhile, the hot-swappable design allows maintenance without shutting down entire server racks. Consequently, this minimizes disruption to critical applications and services.

Intra-Building Network Connections

Organizations deploy this transceiver for connecting network closets within the same building or adjacent buildings. Specifically, the 550-meter reach accommodates most multi-floor office buildings and campus structures. In turn, this eliminates the need for fiber repeaters or media converters between floors.

Furthermore, the module works seamlessly with legacy multimode fiber infrastructure already installed in many buildings. As a result, organizations can upgrade to Gigabit speeds without costly fiber replacement projects. Additionally, the lower cost compared to single-mode alternatives makes it attractive for budget-conscious deployments.

Storage Area Networks (SAN)

Data centers utilize the GLC-SX-MMD for storage area network connections between servers and storage arrays. Particularly, the low latency and high reliability prove essential for storage traffic requiring consistent performance. Consequently, it ensures smooth operation of database applications and virtualization platforms.

Moreover, the digital optical monitoring provides visibility into storage network health. Subsequently, this allows IT teams to detect degrading fiber connections before they cause storage access issues. In effect, this proactive monitoring prevents data access disruptions that could impact business operations.

Access Layer Switching

Network teams deploy these transceivers in access layer switches connecting user devices and access points. Typically, access switches connect to distribution switches via fiber uplinks. Therefore, the GLC-SX-MMD provides reliable uplink connectivity for access layer infrastructure.

In addition, the cost-effectiveness makes it practical for deployments requiring numerous transceivers across multiple access switches. As a result, organizations can implement fiber-based access networks without excessive equipment costs. Furthermore, the reliability reduces support calls and maintenance requirements over the network’s lifespan.

Installation & Compatibility Considerations

The GLC-SX-MMD requires multimode fiber cable with LC connectors terminated at both ends. Before installation, verify that existing fiber plant uses either 50/125μm or 62.5/125μm multimode fiber. This is important because the module is specifically designed for multimode fiber and will not work with single-mode fiber.

Meanwhile, the module works in any Cisco device with available SFP or SFP+ ports. However, ensure that the fiber distance does not exceed the module’s maximum supported length. For OM1 fiber (62.5/125μm), the maximum distance is 220 meters. In contrast, OM2 fiber (50/125μm) supports the full 550-meter distance.

Furthermore, the digital optical monitoring feature provides ongoing link verification through Cisco IOS commands. In turn, this helps administrators confirm proper installation and monitor link quality over time. Subsequently, regular monitoring of DOM parameters allows identification of dirty connectors or degrading fiber before they cause outages. Ultimately, this proactive approach reduces unplanned downtime and extends the useful life of the fiber infrastructure.
