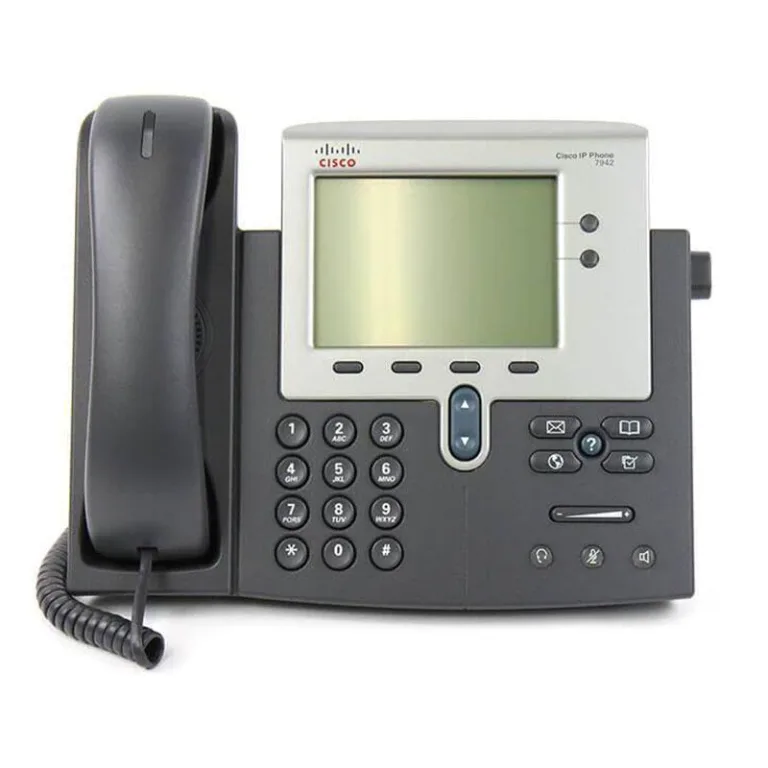

Cisco 7900 Series IP Phone CP-7942G

The Cisco 7900 Series IP Phone CP-7942G delivers reliable enterprise-grade voice communication designed for office professionals and business environments requiring dependable telephony solutions. This two-line IP phone combines intuitive operation with high-definition audio quality, making it ideal for desk workers, administrative staff, and professionals who need straightforward communication tools without unnecessary complexity. Moreover, the CP-7942G integrates seamlessly with Cisco Unified Communications Manager and supports both SCCP and SIP protocols, thereby providing flexible deployment options for various business communication infrastructures.

Key Features & Benefits

• High-Definition Audio Quality: Delivers wideband audio through the handset, headset, and full-duplex speakerphone for natural-sounding conversations. Consequently, users experience reduced listening fatigue during extended conference calls and can clearly understand every detail of important business discussions.
• Two-Line Capability with Programmable Keys: Provides two dedicated line keys with visual LED indicators for managing multiple calls and monitoring line status. Furthermore, additional programmable buttons can be configured for speed dials, call forwarding, or busy lamp field monitoring based on specific workflow requirements.
• 4.3-Inch Grayscale Display: Features a high-resolution backlit LCD screen that displays caller information, call duration, and phone directories clearly. In addition, the intuitive menu system provides easy access to call history, settings, and corporate directories without complex navigation.
• Integrated Gigabit Ethernet Switch: Includes dual 10/100/1000 Ethernet ports that connect both the IP phone and an adjacent computer through a single network connection. As a result, businesses reduce cabling infrastructure costs while maintaining high-speed network performance for both voice and data applications.
• Power over Ethernet (PoE) Capability: Operates using IEEE 802.3af PoE standard, drawing power directly from the network switch through the Ethernet cable. Therefore, deployment becomes more flexible and cost-effective by eliminating the need for dedicated power outlets and reducing cable clutter at each workstation.

Technical Specifications

Display & Interface

• Screen: 4.3-inch grayscale LCD with backlight (396×162 pixel resolution)
• Line Keys: 2 programmable line keys with LED indicators
• Feature Keys: Hold, Transfer, Conference, Redial, Messages, Directories, Settings
• Navigation: 4-way navigation cluster with Select button
• Volume Control: Dedicated volume adjustment keys
• Softkeys: 4 context-sensitive softkeys below display

Audio Performance

• Codecs Supported: G.711a, G.711mu, G.722, G.729a, G.729ab, iLBC
• Audio Quality: Wideband audio (handset, headset, speakerphone)
• Full-Duplex Speakerphone: Acoustic echo cancellation for hands-free calling
• Headset Support: RJ-9 headset port with wideband audio capability
• Ringer: Adjustable volume with multiple ring tone options

Network Connectivity

• Ethernet Ports: 2x 10/100/1000 Mbps Gigabit Ethernet (1 PC port, 1 network port)
• Power Options: IEEE 802.3af PoE or optional 48V power adapter (CP-PWR-CUBE-3)
• Power Consumption: Maximum 6.3W (PoE), typical 4W
• Protocols: SCCP (Skinny) and SIP firmware options
• VLAN Support: IEEE 802.1Q and 802.1p for voice/data segmentation

Physical Specifications

• Dimensions: 224mm x 200mm x 58mm (8.8″ x 7.9″ x 2.3″)
• Weight: 1.08 kg (2.4 lbs) with handset and cord
• Mounting: Desk-mounted with adjustable footstand or optional wall mount kit
• Display Angle: Two-position adjustable stand for optimal viewing
• Handset Cord: 2.13m (7 feet) coiled handset cable included

Environmental & Regulatory

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 95% non-condensing
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Certifications: FCC Part 15 Class B, CE Mark, UL 60950, IEC 60950, VCCI
• Accessibility: Hearing aid compatible (HAC) handset, ADA compliant

Call Control Compatibility

• Primary Platform: Cisco Unified Communications Manager 4.1 or later
• Protocol Support: SCCP (Skinny Client Control Protocol) or SIP firmware
• Third-Party Systems: Compatible with SIP-based call control platforms
• Maximum Lines: 2 directory numbers with shared line appearances

Use Cases & Applications

General Office Environments

The CP-7942G serves as a reliable desktop phone for employees requiring straightforward two-line communication capabilities. Additionally, the programmable feature keys allow workers to create speed dials for frequently contacted colleagues or departments, improving daily workflow efficiency. Furthermore, the high-definition audio quality ensures clear communication during customer calls and internal collaboration sessions.

Administrative and Support Staff

Administrative professionals benefit from the phone’s dual-line capability for managing incoming calls while maintaining active conversations. Moreover, the dedicated transfer and conference keys streamline call handling tasks without requiring complex button sequences. In addition, the backlit display remains visible in various lighting conditions, supporting productivity throughout the workday.

Manufacturing and Warehouse Facilities

Industrial environments utilize the Cisco 7942G in offices, loading docks, and supervisory stations where reliable communication equipment is essential. Notably, the rugged construction withstands typical office wear while the PoE capability simplifies installation in areas where electrical outlets may be limited. Meanwhile, the loud speakerphone proves valuable in noisy environments where hands-free communication is necessary.

Educational Institutions

Schools, colleges, and training facilities deploy the CP-7942G across faculty offices, administrative areas, and department workrooms where budget-conscious communication solutions are required. Specifically, the phone’s integration with Cisco communications platforms supports campus-wide unified communications initiatives. Furthermore, the intuitive interface requires minimal training for staff members with varying technical skill levels.

Healthcare Settings

Medical clinics and healthcare facilities use the Cisco 7942G in exam rooms, nursing stations, and administrative offices where reliable patient communication is critical. Additionally, the wideband audio quality ensures medical terminology and patient information are communicated clearly between healthcare providers. Therefore, the phone supports accurate information exchange that contributes to quality patient care delivery.

Management & Deployment

The Cisco 7900 Series IP Phone integrates directly with Cisco Unified Communications Manager for centralized administration and configuration management. Consequently, IT teams can deploy firmware updates, adjust settings, and troubleshoot issues remotely across entire phone populations without requiring physical access to individual devices. For organizations using standards-based SIP platforms, the alternative SIP firmware provides compatibility with third-party call control systems while maintaining essential phone functionality. Moreover, the phone supports automatic provisioning through DHCP and TFTP protocols, thereby simplifying initial deployment and reducing configuration time for large-scale installations. Additionally, the CP-7942G’s proven reliability and mature feature set make it an economical choice for businesses seeking dependable communication tools without investing in the latest generation equipment.
