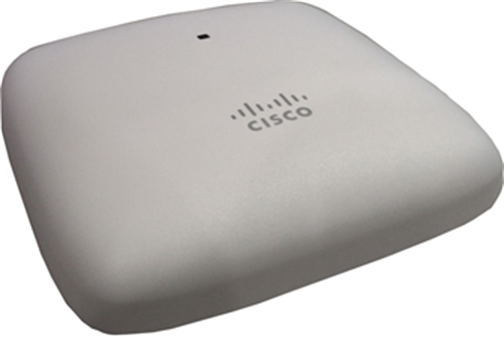

Cisco Business 240 Series Access Point CBW240AC-E

The Cisco Business 240 Series Access Point CBW240AC-E delivers enterprise-grade wireless connectivity designed for small to medium-sized businesses. This dual-band 802.11ac Wave 2 access point provides reliable network coverage for offices, retail spaces, and hospitality environments requiring seamless connectivity across multiple devices. Moreover, the CBW240AC-E combines professional-grade performance with simplified management, thereby making it accessible for businesses without dedicated IT staff.

Key Features & Benefits

• Dual-Band Wave 2 Technology: Supports simultaneous 2.4GHz and 5GHz connections, allowing devices to connect on the optimal frequency for reduced interference. Consequently, this dual-band capability delivers improved overall network performance across all connected devices.
• Multi-User MIMO (MU-MIMO): Enables the access point to communicate with multiple devices simultaneously rather than sequentially. As a result, wait times are significantly reduced while efficiency improves in environments with numerous connected devices.
• PoE+ Powered Operation: Receives both power and data through a single Ethernet cable, eliminating the need for separate power outlets. Furthermore, this simplified installation approach proves particularly valuable in areas where electrical access is limited.
• Intelligent Band Steering: Automatically directs compatible devices to the less-congested 5GHz band, optimizing network distribution. In addition, this intelligent routing ensures faster speeds for devices that support dual-band connectivity.
• Cloud and On-Premises Management: Offers flexible deployment options through either cloud-based Cisco Business Dashboard or local management. Therefore, businesses can choose the administration method that best fits their infrastructure and preferences.

Technical Specifications

Wireless Performance

• Standards: IEEE 802.11a/b/g/n/ac Wave 2
• Maximum Data Rate: Up to 1.3 Gbps aggregate
• Frequency Bands: 2.4GHz (up to 300 Mbps), 5GHz (up to 867 Mbps)
• Spatial Streams: 2×2:2 MIMO configuration
• Channel Width: 20MHz, 40MHz, 80MHz

Network Connectivity

• Ethernet Port: 1x Gigabit Ethernet (10/100/1000BASE-T) with 802.3af/at PoE
• VLAN Support: Multiple SSIDs with VLAN tagging
• Maximum Concurrent Clients: Up to 100 devices per access point

Physical Specifications

• Dimensions: 180mm x 180mm x 38mm (7.1″ x 7.1″ x 1.5″)
• Weight: 365 grams (0.8 lbs)
• Mounting Options: Ceiling tile, wall, or surface mount (hardware included)
• LED Indicators: Status and activity lights with disable option

Power Requirements

• Input: 802.3af PoE or 802.3at PoE+
• Power Consumption: 12.95W maximum
• Power Supply: External 12V DC adapter available separately (optional)

Environmental & Regulatory

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, CE, IC, Wi-Fi CERTIFIED

Security Features

• Encryption: WPA2-Personal, WPA2-Enterprise, WPA3
• Authentication: 802.1X RADIUS, MAC address filtering
• Guest Network: Isolated guest access with customizable splash pages

Use Cases & Applications

Small Business Offices

The CBW240AC-E provides reliable wireless coverage for teams of 20-50 employees across single or multiple office spaces. Additionally, it handles concurrent usage from laptops, smartphones, tablets, and VoIP phones without performance degradation. Furthermore, the cloud management option proves particularly valuable for multi-location businesses requiring centralized network oversight.

Retail Environments

Retail stores benefit from the access point’s ability to support both staff devices and customer guest networks simultaneously. Moreover, the captive portal functionality enables branded login pages for customer WiFi, while separate VLANs keep point-of-sale systems secure. In addition, the compact design blends naturally with retail aesthetics when ceiling-mounted.

Hospitality Venues

Cafes, restaurants, and small hotels use the Cisco Business 240 Series to offer complimentary WiFi that accommodates high device density during peak hours. Meanwhile, the guest network isolation protects business operations while band steering ensures optimal performance distribution across connected devices.

Educational Spaces

Training centers and tutoring facilities leverage the CBW240AC-E to support classrooms with 15-30 students simultaneously accessing online learning platforms. Specifically, the MU-MIMO technology addresses the challenge of multiple devices requiring bandwidth-intensive applications like video streaming and file downloads.

Management & Deployment

The Cisco Business 240 Series Access Point integrates seamlessly with existing network infrastructure. Notably, businesses using Cisco switches benefit from automatic discovery and simplified provisioning. For organizations preferring cloud management, the Cisco Business Dashboard provides remote monitoring, firmware updates, and configuration changes from any internet-connected device. Alternatively, the local web interface offers complete control for businesses preferring on-premises administration without cloud dependencies.
