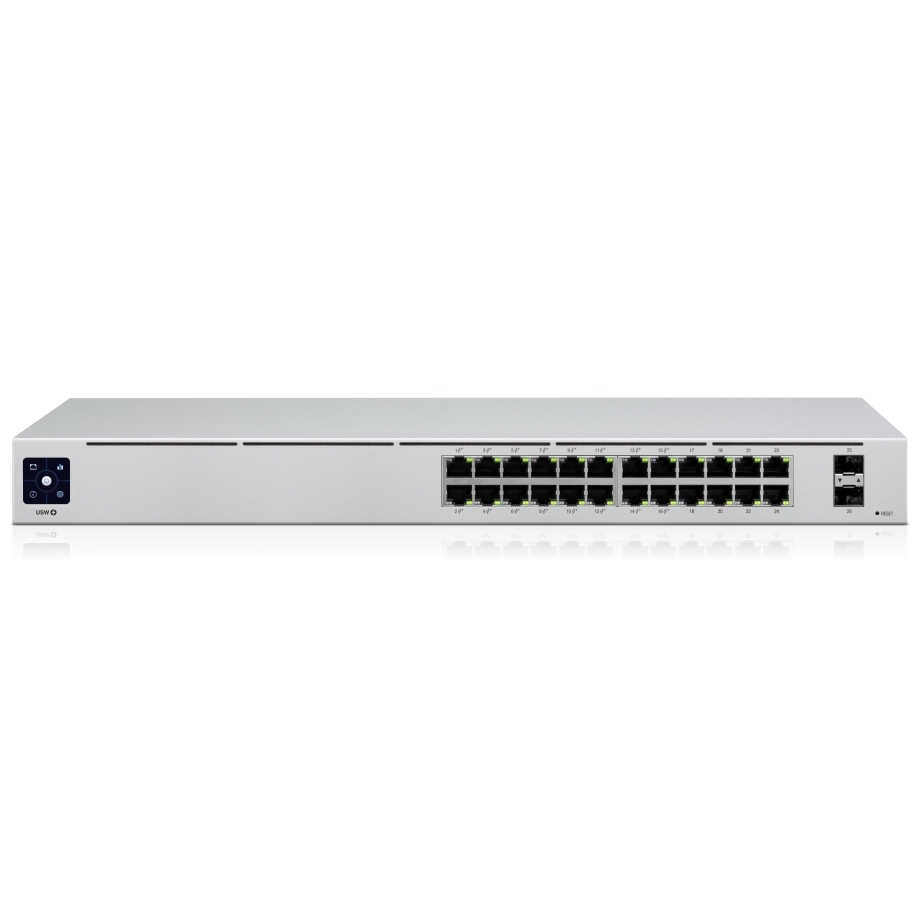

Ubiquiti UniFi USW-PRO-24-POE 24-Port PoE+ Switch with SFP+

This is a managed Layer 3 PoE+ switch designed for professional deployments requiring power delivery to multiple devices.

Key Features

Port Configuration:

• 24× Gigabit Ethernet RJ45 ports with PoE capabilities
• 2× 1/10G SFP+ ports for fiber uplinks

PoE Capabilities:

• 16 ports with PoE/PoE+ support
• 8 ports with 60W PoE++ support
• Total PoE budget: 400W
• PoE++ support (up to 60W per port on select ports)

Performance:

• Switching capacity: 88 Gbps
• Total non-blocking throughput: 44 Gbps
• Forwarding rate: 65 Mpps
• Packet buffer: 2 MB

Layer 3 Features:

• DHCP server and relay functionality
• Inter-VLAN routing
• Static routing support
• Supports up to 1,000 VLANs
• MAC address table: 16,000 entries

Physical Specifications:

• Dimensions: 442.4 × 285.4 × 43.7 mm (17.4 × 11.2 × 1.7″)
• Weight: 4.3 kg without brackets, 4.4 kg with brackets
• SGCC steel enclosure
• 1U rack-mountable form factor

Power:

• 50W power consumption (excluding PoE output)
• 450W maximum (including PoE output)
• DC power backup support

Management:

• Ethernet in-band management
• UniFi Network application integration

Comparison to USW-24

The USW-PRO-24-POE is significantly more advanced than the standard USW-24:

• PoE support: 400W budget vs. no PoE on USW-24
• Layer 3 capabilities: Full routing features vs. Layer 2 only
• Performance: 88 Gbps switching capacity vs. 52 Gbps
• Uplinks: 10G SFP+ vs. 1G SFP
• Power backup: DC backup option available
• Size: Deeper at 11.2″ vs. 7.9″
